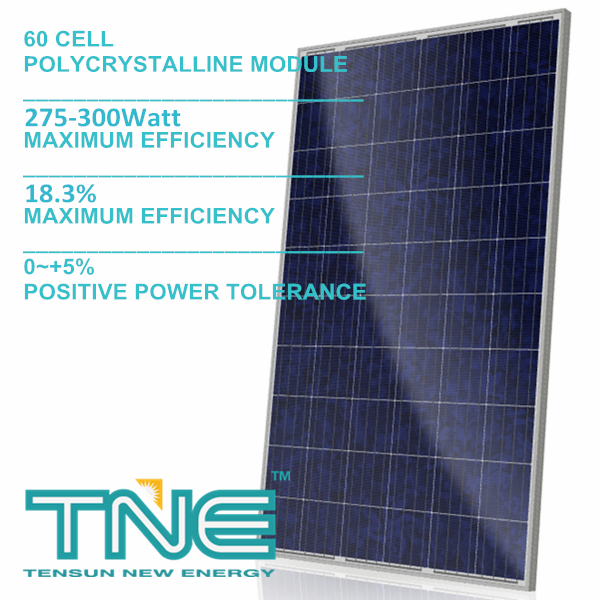

60Cells Polycrystalline
Technical Datas


Type PID Free Polycrystalline 60-cell Module
Output Up to 300Wp
Efficiency Up to 18.3%
Junction Box IP67
Weight 19.0 kg
Temp. Coefficients of Pmax -0.40%/℃



Electrical Parameters at Standard Test Conditions(STC)






Module type 270P 275P 280P 285P 290P 295P 300P
Rated Maximum Power (Pmax/W) 270 275 280  285 290 295 300
Maximum Power Voltage (Vmp/V) 30.95 31.29 31.63 32.24 32.47 32.85 33.11
Open-circuit Voltage (Voc/V) 38.30 38.46 38.62 37.60 37.93 38.40 38.75
Maximum Power Current (Imp/A) 8.72 8.79 8.85 8.84 8.93 8.98 9.06
Short-circuit Current (Isc/A) 9.16 9.22 9.28 9.60 9.68 9.73 9.82
Module Efficiency (%) 16.5 16.80 17.11 17.41 16.5 18.02 18.33
 STC: Irradiance 1000W/M2    Module Temperature: 25   AM=1.5


KEY FEATURES


Limited power degradation of Eagle module caused by PID effect is guaranteed under strict testing condition (85℃/85%RH,96hours)for mass production

Polycrystalline 60-cell module achieves a power output up to 280Wp

Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal)

Advanced glass and surface texturing allow for excellent performance in low-light environments

High salt mist and ammonia resistance certified by TUV NORD

Improved temperature coefficient decreases power loss during high temperatures
