Technical Data

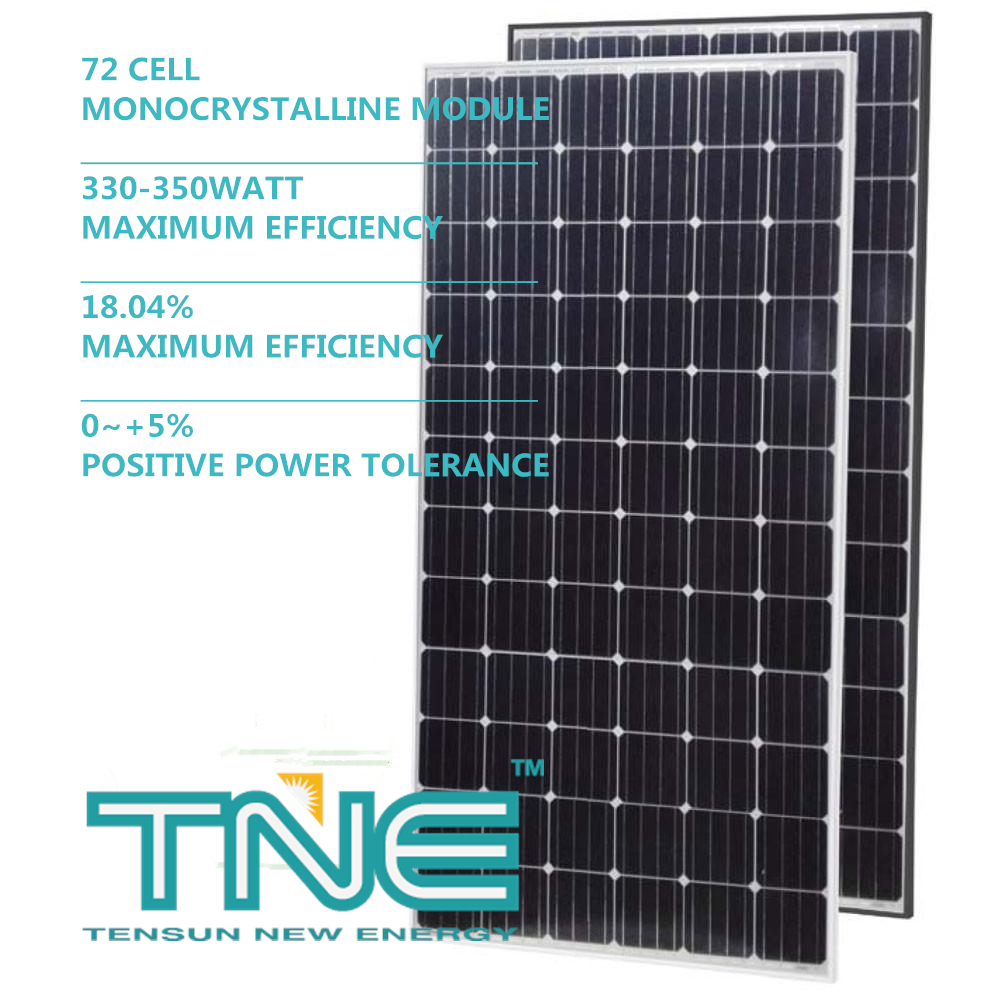

Type PID Free  Monocrystalline 72-cell Module
Output Up to 350Wp
Efficiency Up to 18.04%
Junction Box IP67
Weight 26.5 kg
Temp. Coefficients of Pmax -0.40%/℃






Electrical Parameters at Standard Test Conditions(STC)
 Module type 320M 325M 330M 335M 340M 345M 350M
 Rated Maximum Power (Pmax/W) 320 325 330     335 340 345 330
 Maximum Power Voltage (Vmp/V) 37.55 37.65 37.94 37.98 38.12 38.5 38.63
 Open-circuit Voltage (Voc/V) 45.80 45.90 46.00 46.2 46.3 46.4 46.6
 Maximum Power Current (Imp/A) 8.53 8.64 8.70 8.82 8.92 8.96 9.06
 Short-circuit Current (Isc/A) 8.99 9.05 9.18 9.31 9.44 9.48 9.56
 Module Efficiency (%) 16.5 16.7 17.0 17.3 17.5 17.8 18.0

KEY FEATURES

Limited power degradation of  module caused by PID effect is guaranteed under strict testing condition (85℃/85%RH,96hours)for mass production

Monocrystalline 72-cell module achieves a power output up to 350Wp

Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal)

Advanced glass and surface texturing allow for excellent performance in low-light environments

High salt mist and ammonia resistance certified by TUV NORD

Improved temperature coefficient decreases power loss during high temperatures
